TouchLay Nova
the people magnet

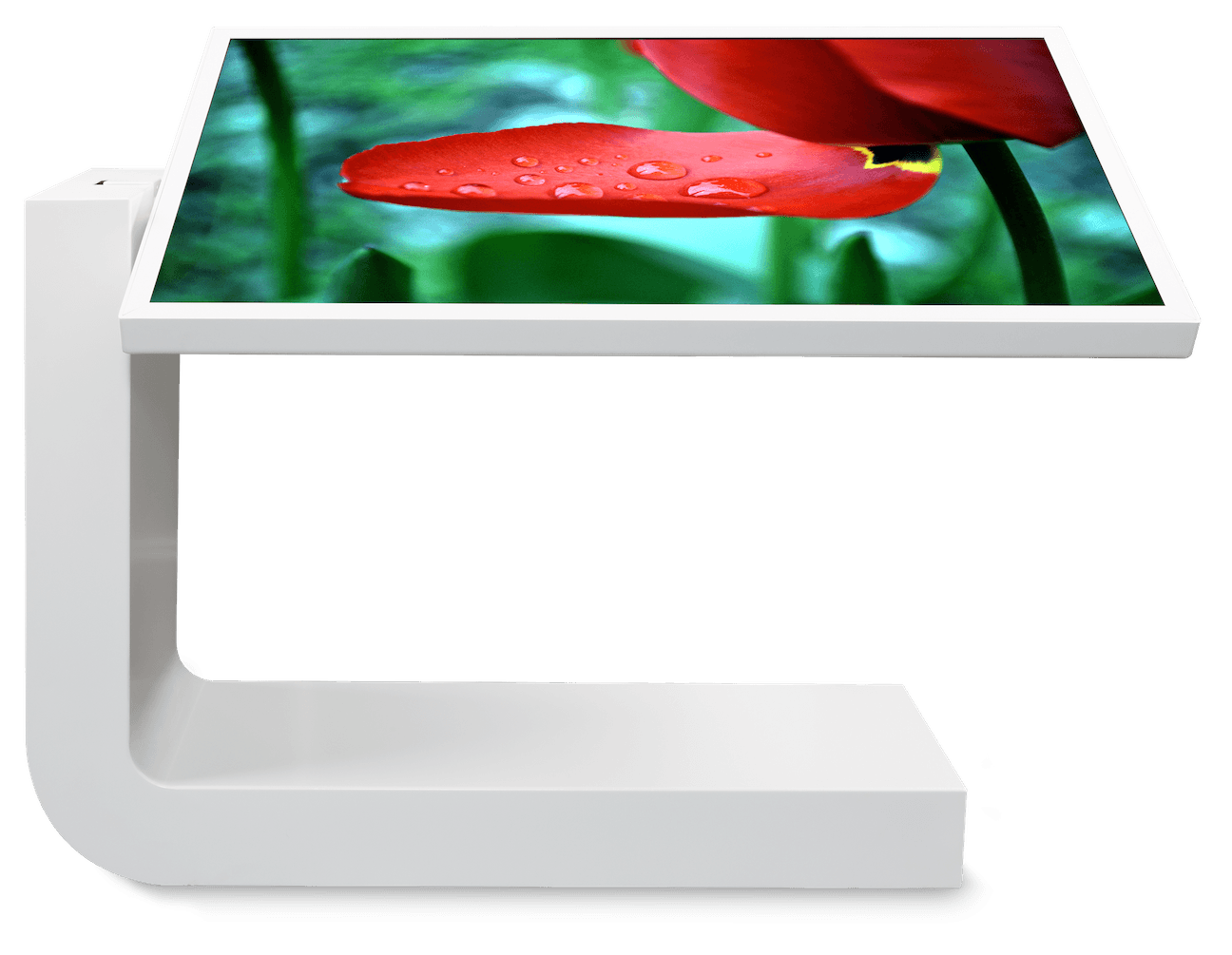

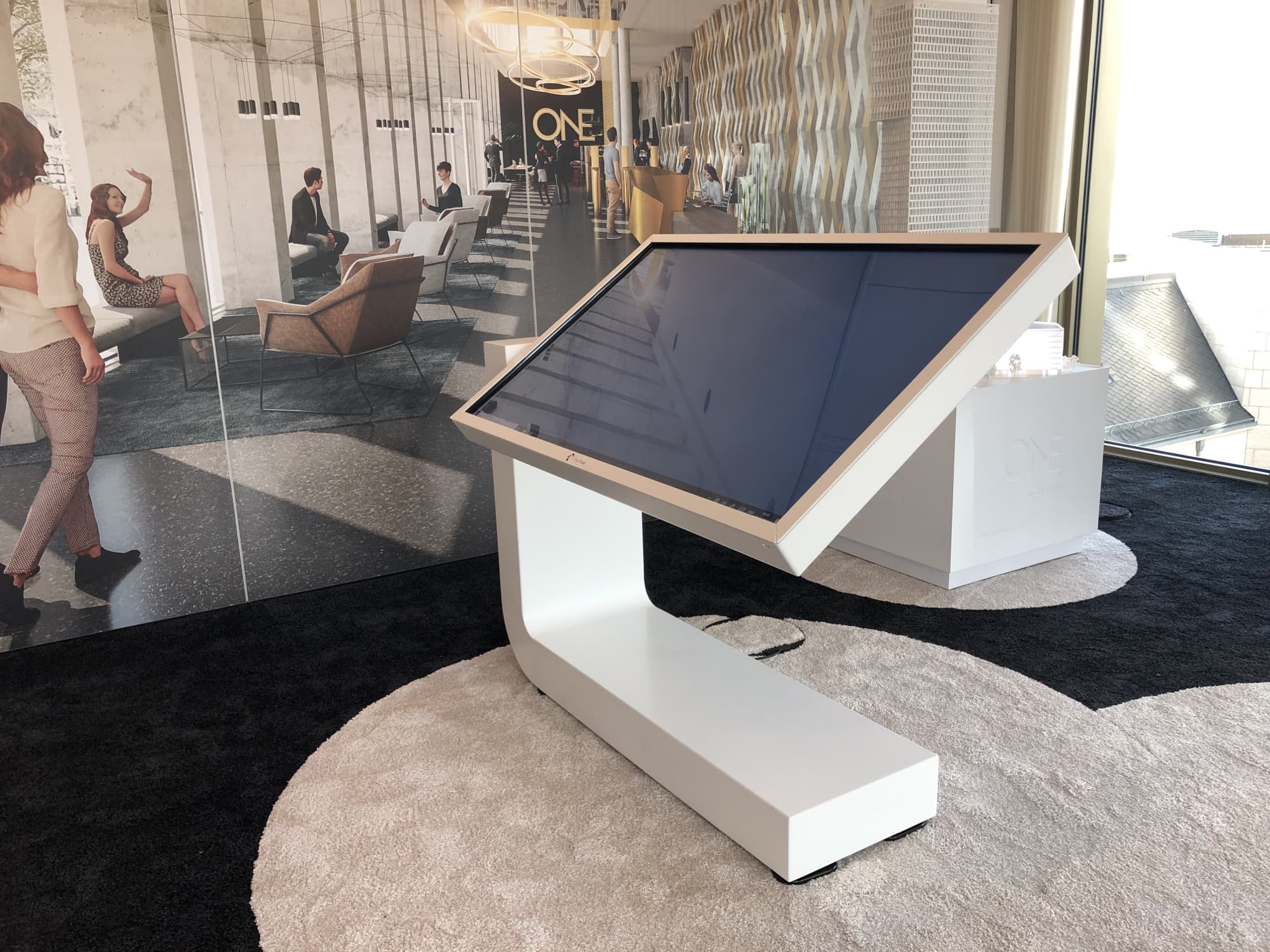

The TouchLay Nova is a 55 inch multitouch presentation table
with adjustable height & tilt in landscape and portrait mode

You're in good company

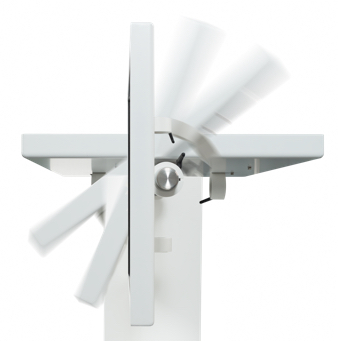

Flexible Design

The TouchLay Nova adjusts perfectly to your needs.

Use your Nova as presentation screen, touch table, or even as a "big smartphone" in portrait mode.

When purchasing your Nova, components can be upgraded and a custom RAL color can be selected.

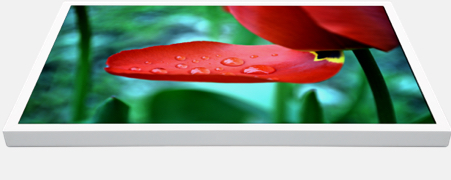

Vivid Display

The TouchLay Nova multitouch presentation screen uses a 55 inch 4K 24/7 industrial display. We personally made sure that your products look as good and impressive as possible from any angle.

Precise Multitouch

Our precise multitouch sensor can detect multiple touch points at once, and even objects up to 1.5mm!

The sensor refreshes 250 times per second to ensure fluid interaction with your TouchLay Nova.

Quick Setup

Thanks to the flightcase, the TouchLay Nova can be set up quickly and easily. No assembly is required. So you do not lose any valuable time at events and trade fairs.

Apps & Software

Present your products, services, software and even apps in portrait mode. With the TouchLay Nova you can inspire your customers in a new way.

Known Systems

We made sure that you do not need to learn anything new to be able to use your TouchLay Nova. You can use Windows, Android or a custom solution.

Excellent Quality

Quality is very important to us, which is why we produce every TouchLay Nova in our home country, beautiful Austria.

We pay attention to detail during the production to ensure that your products and services can be presented without any troubles.

Additionally, we also provide services for content creation and support during events - we are always here to help!

Specification

Multitouch

Touch points

2 — 32 (base model: 6)

Touch detection

Finger and Objects from 1.5 mm

Touch refresh rate

250 fps

Passive and active pen input

Yes

Display

Usage

24 / 7

Diagonal

139,7 cm (55 Inch)

Resolution

1920 x 1080 (16:9)

Security glass

4 mm

Viewing angle

178°

Contrast

5.000:1

Brightness

450 cd/m²

Framework

Adjustments

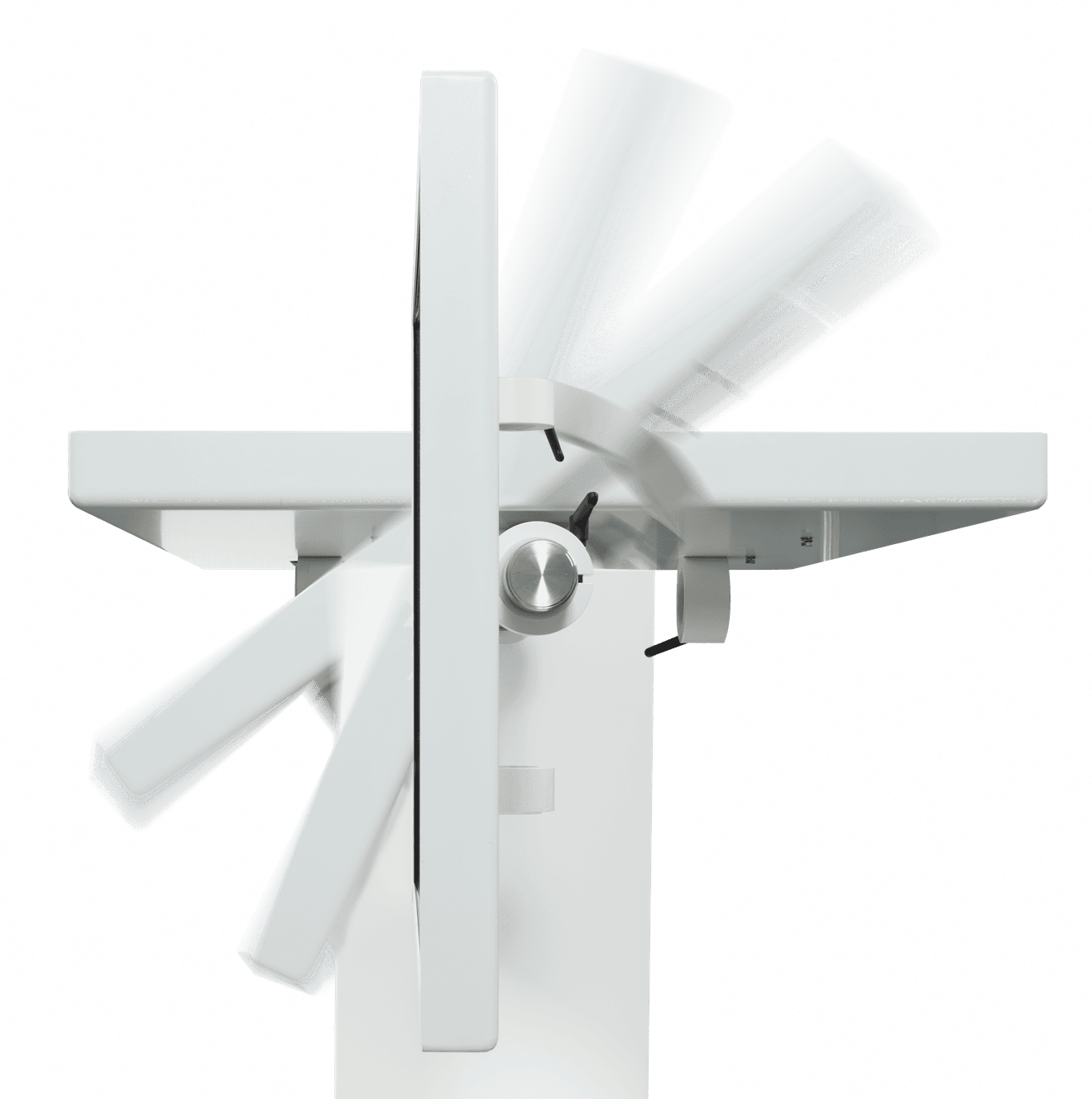

Height adjustable: 45 cm (Spring), Rotation: 90°

Color

nova white (default) - Other RAL colors upon request

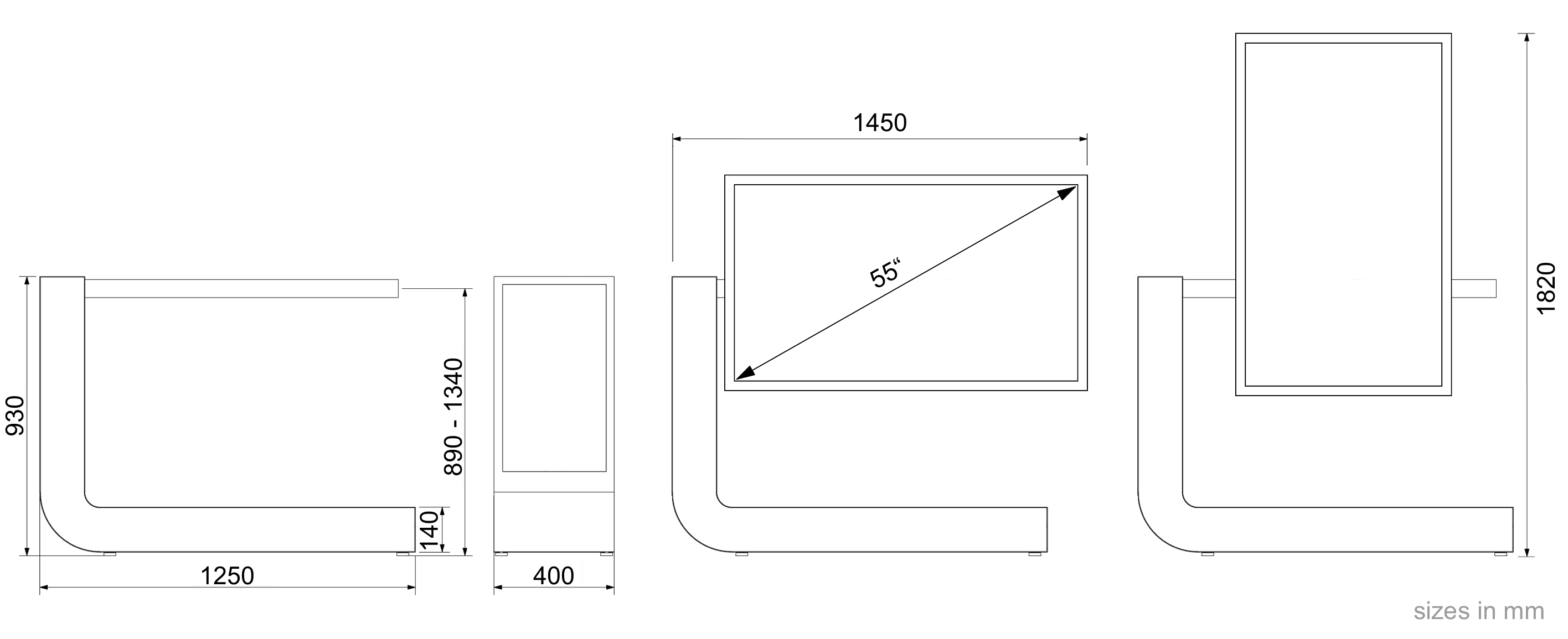

Dimensions Framework (without display)

126 x 40 x 93 cm (L x W x H)

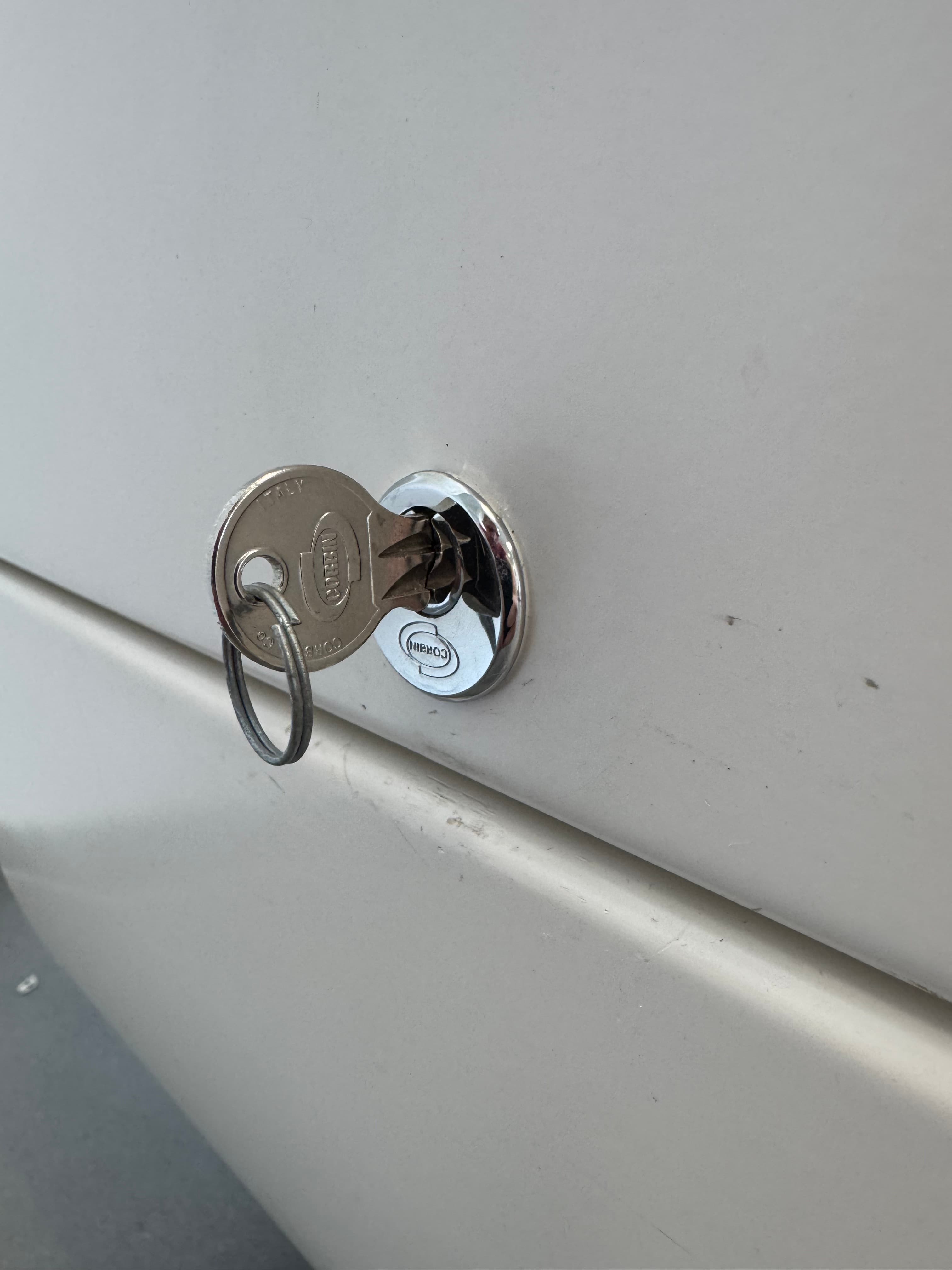

Lockable

Yes

Weight

Framework: 68 kg
Display: 42 kg
Total: 110 kg

Computer

Operating system

Windows 10 / Android

Processor

Intel i3 / i5

Memory

8 GB — 16 GB

Graphics processor

Intel HD Graphics 5500 (or higher)

Card reader

SD/SDHC/SDXC

Storage

60 / 128 / 256 GB SSD

Ports

Audio: Microphone, Headphones, Optical
USB Port: 4 x USB 3.0, 1 x USB 2.0
LAN: Dual Gigabit LAN
Wifi: 802.11ac/b/g/n
Antenna: 1 x WiFI SMA connector
Bluetooth: Bluetooth 4.0
Graphic Ports: DisplayPort, HDMI

Extensive
Presentation Platform
interactive & always up-to-date!

We create powerful & interactive brand experiences tailored to your corporate identity.

Thanks to our specifically developed system you can connect our digital solutions with your already existing data and update it yourself, whenever you need.

Detailed analysis will give you a continous overview of the customers' interests as well as potential customers.

Wow your customers with our innovative digital solutions!

Areas of Application

Our solutions are flexible and suitable for all industries. We already have a lot of experience with various industries and can therefore create a perfectly fitting concept, to make your products look as attractive as possble. Here you can see a selection of areas, for which we have already created the perfect solutions.

Industrial sector
Display of complex machinery and processes
Banks
Presentation of apps and various financial calculators
Research institutes
Visualization of partners worldwide
Car dealers
Overview of your entire product range
Hotels
Digital foyer with booking opportunities

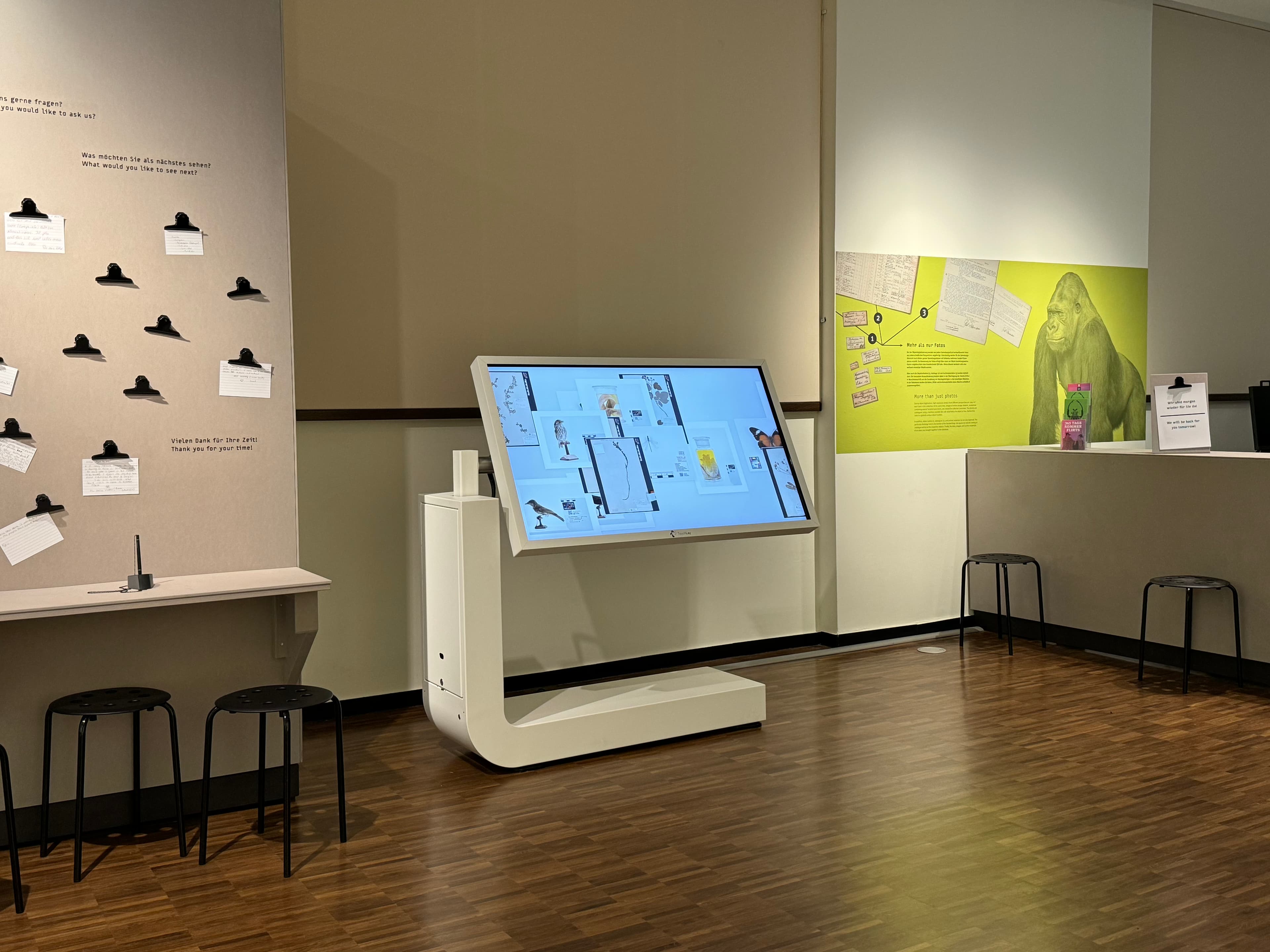

Museums
Interactive sharing of knowledge

Our All-In-One Service

We gladly offer digital solutions perfectly tailored to our hardware. We take care of the whole process, from the first concept to maintenance and support during usage. We are always at the ready and will never let you down!
icon/action/lightbulb_24px_outlined Created with Sketch.
Concept
You tell us about your expectations and together we will discuss the possibilities and create a noncommital graphic concept.
icon/image/brush_24px_outlined Created with Sketch.
Design
During the next step we work out the perfectly customized solution, to optimally meet your needs.
icon/action/verified_user_24px_outlined Created with Sketch.
Control
Every step will be transparent and provide the opportunity for you to make suggestions or changes.
icon/maps/local_shipping_24px_outlined Created with Sketch.
Logistics
We work in close collaboration with our competent logistic partners to safely deliver and set up your hardware as well as explain how to operate the device on-site.
icon/action/build_24px Created with Sketch.
Maintenance & Support
After the finished realization of a project we are available anytime and ready to offer consulting, maintenance and support for the use of our products.

Buy, Rent or Lease

You can buy, lease or rent the TouchLay Nova.

If you are interested, send us an inquiry! We will get back to you as soon as possible.

Customers who use the TouchLay Nova

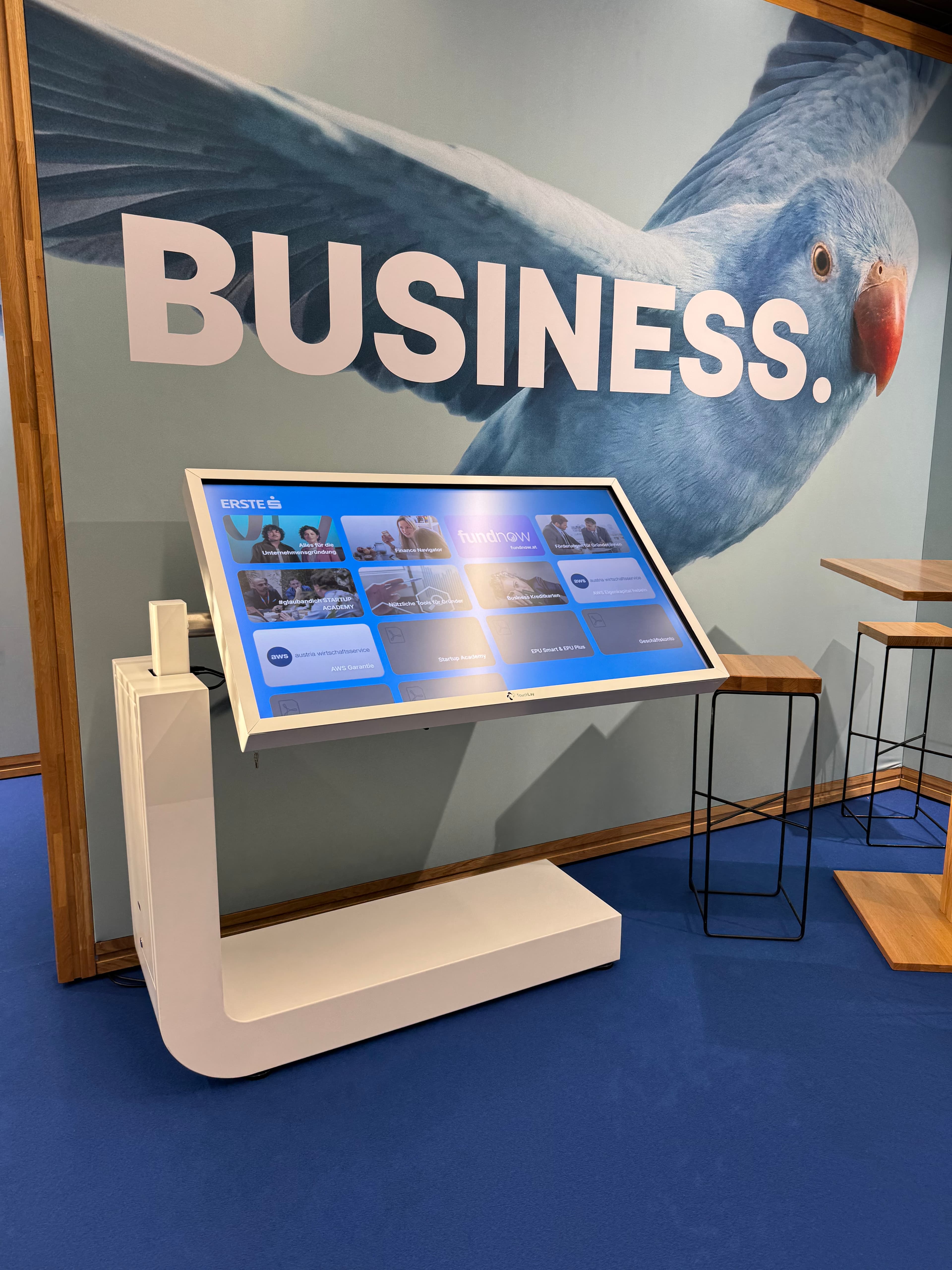

Erste Bank
Reed Exhibitions Wien/Salzburg

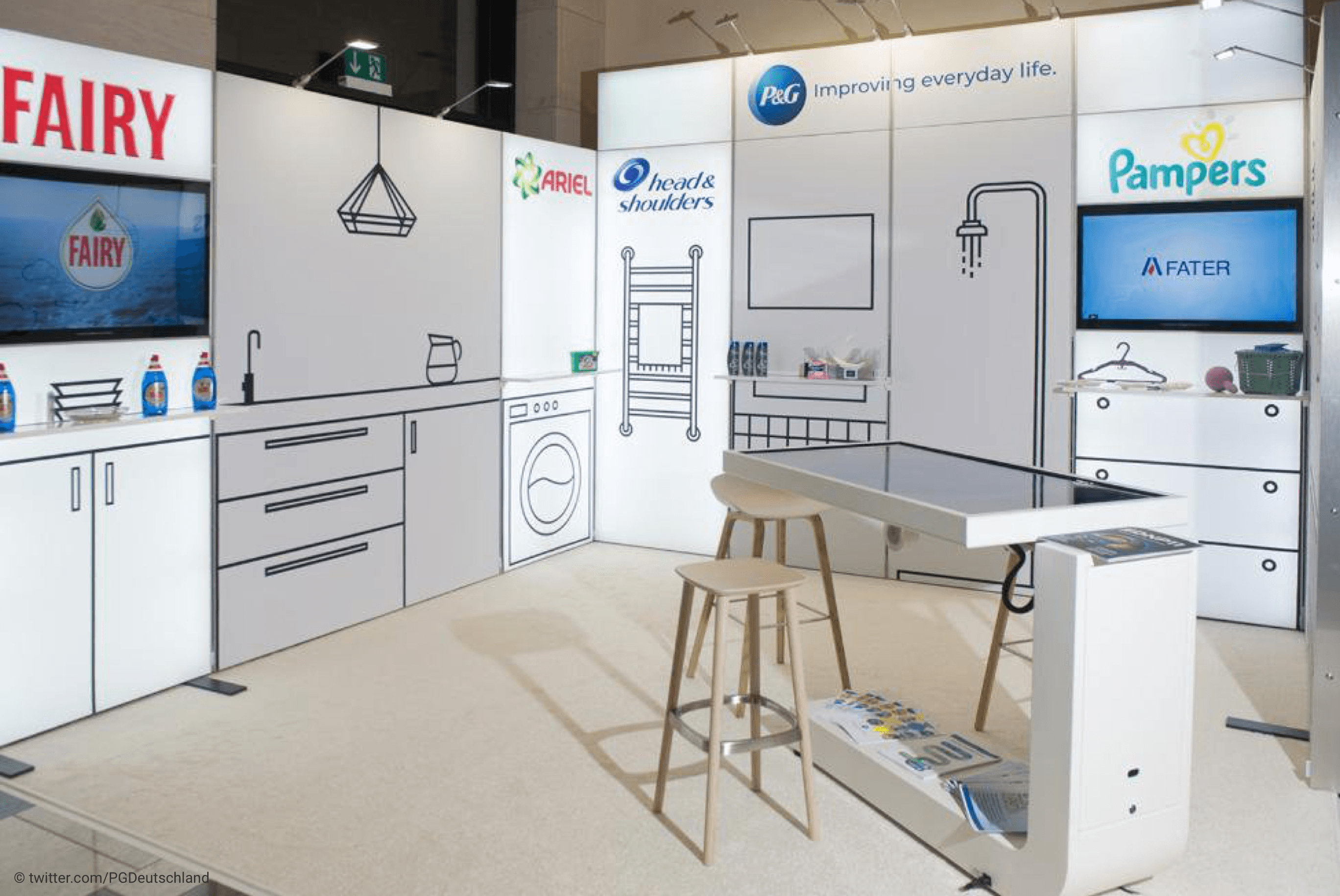

Procter & Gamble
KPMG Austria
Österreichische Post
VerVieVas Graphic Recording

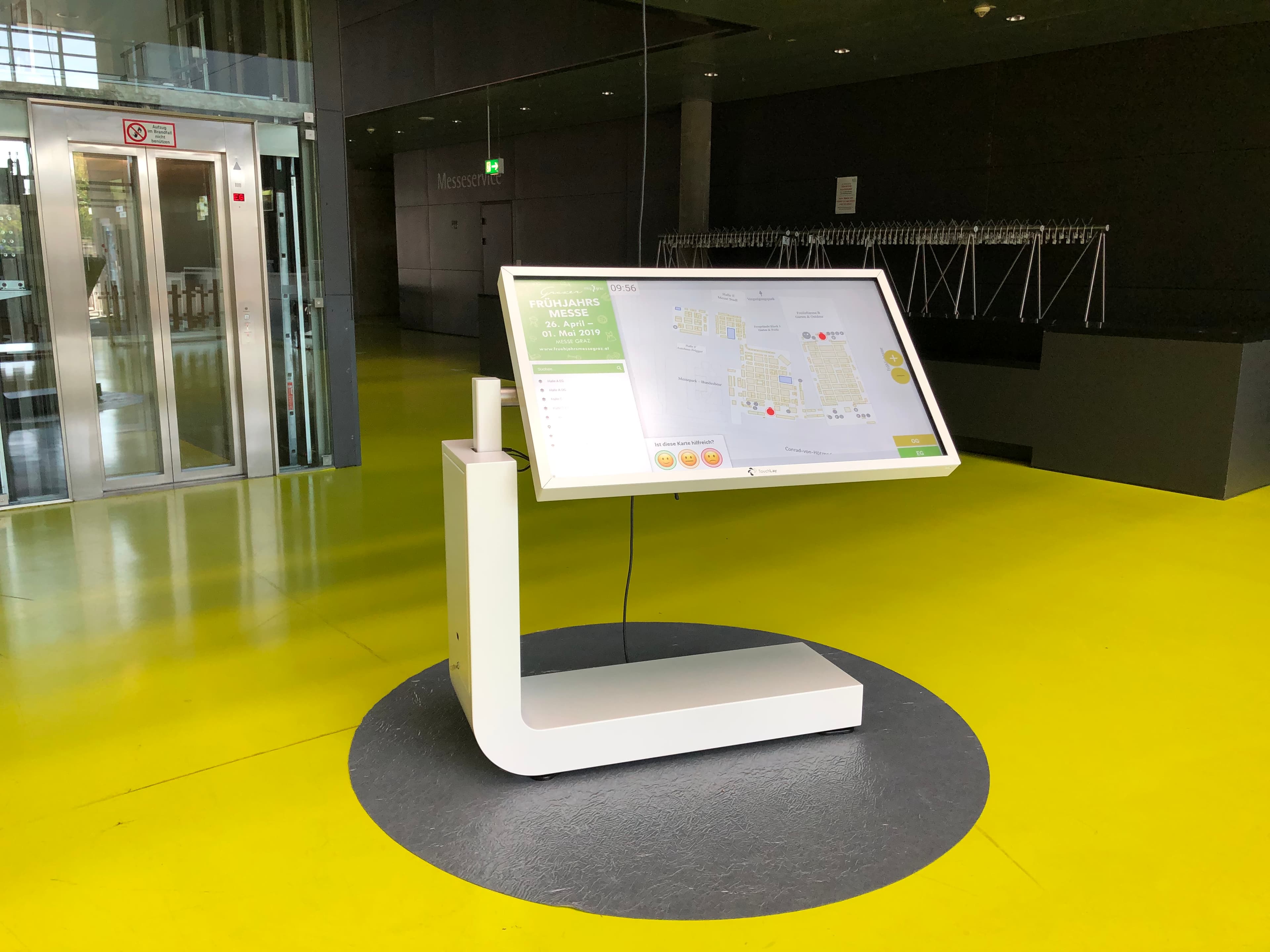

Messe Graz
Messe Frankfurt
ABB
Verbund
Otto Immobilien
Wirtschaftskammer Wien

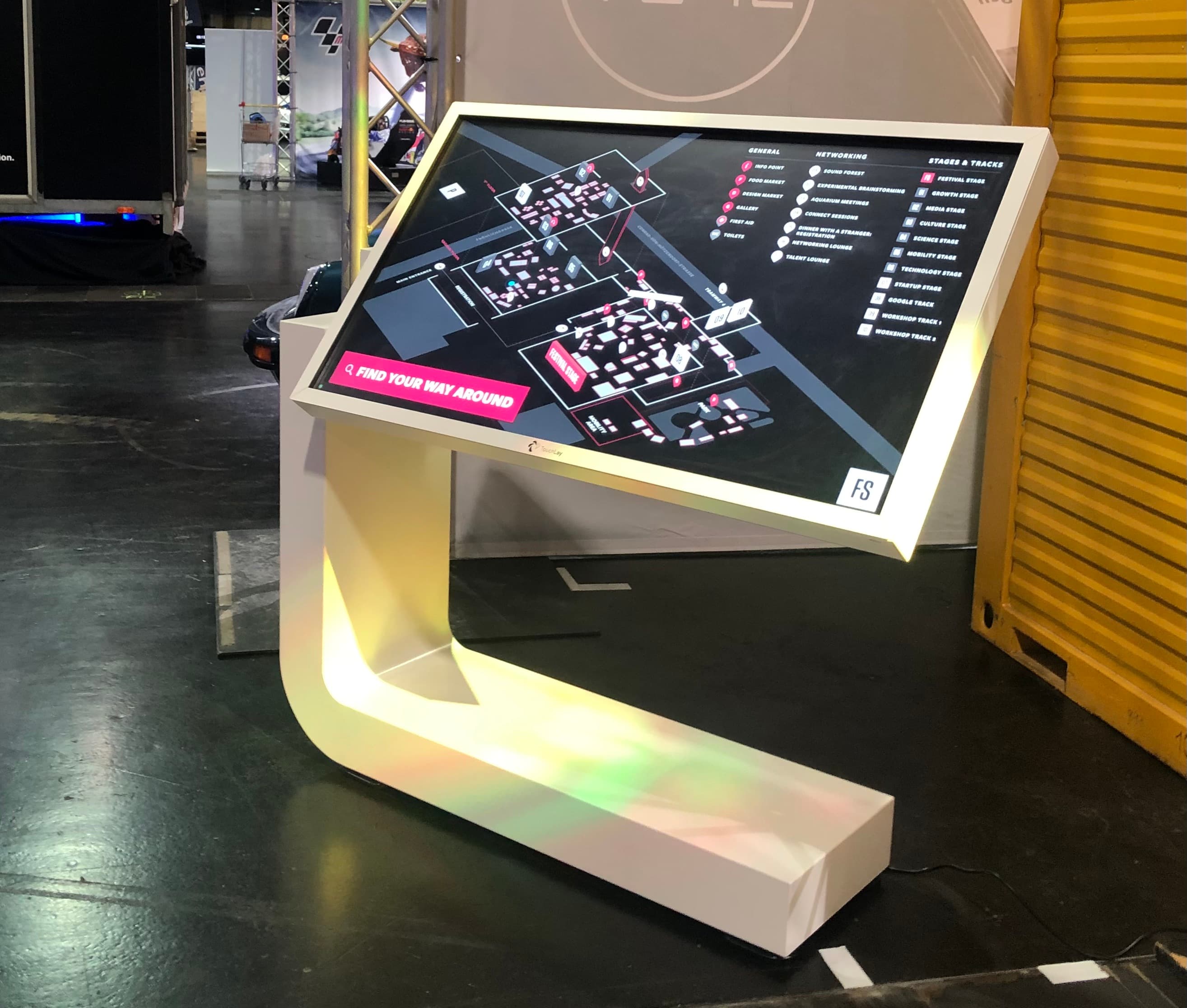

Fifteen Seconds Festival
Wunschhaus
Internorm
Hotel Schwaigerhof

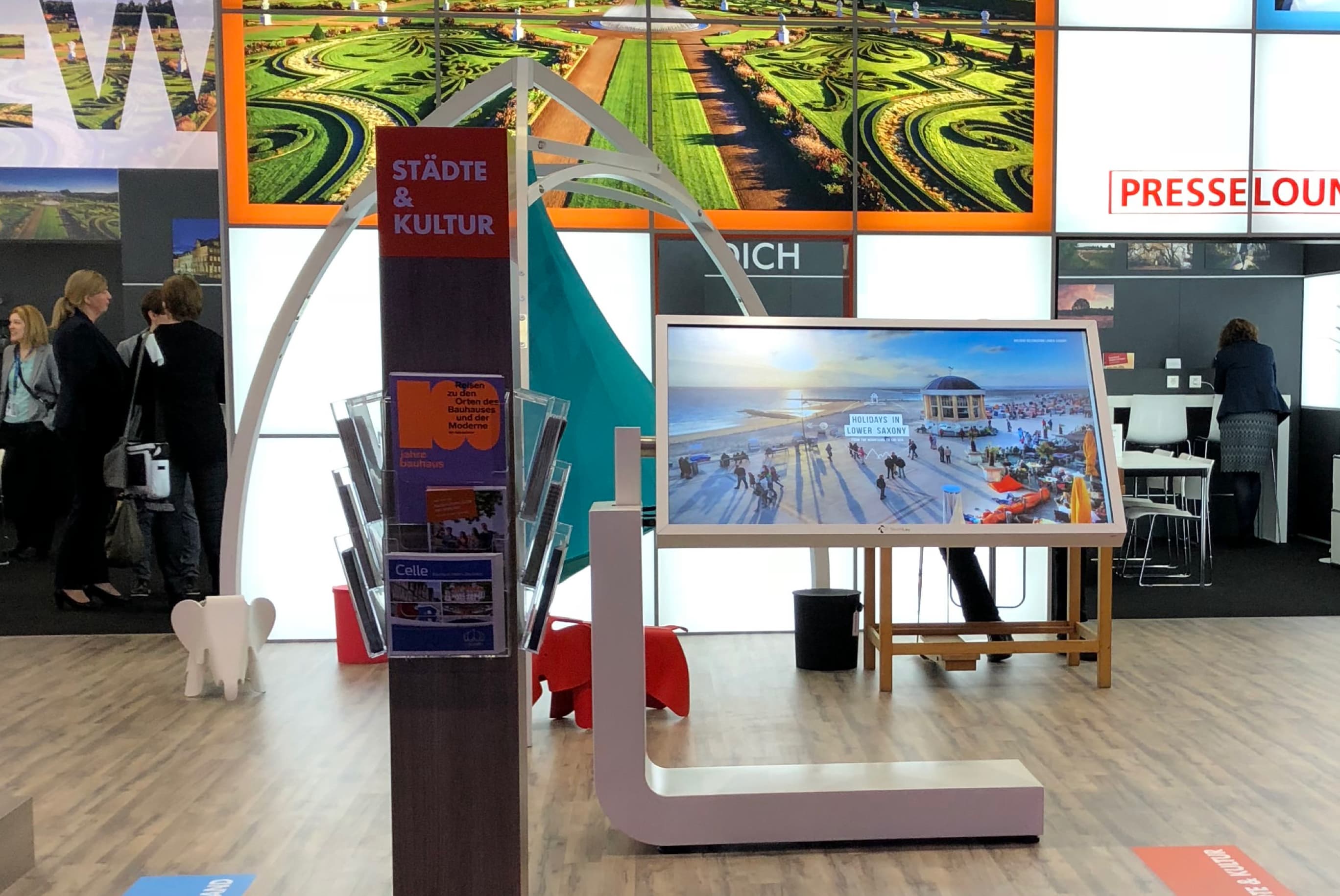

Tourismus Marketing Niedersachsen
